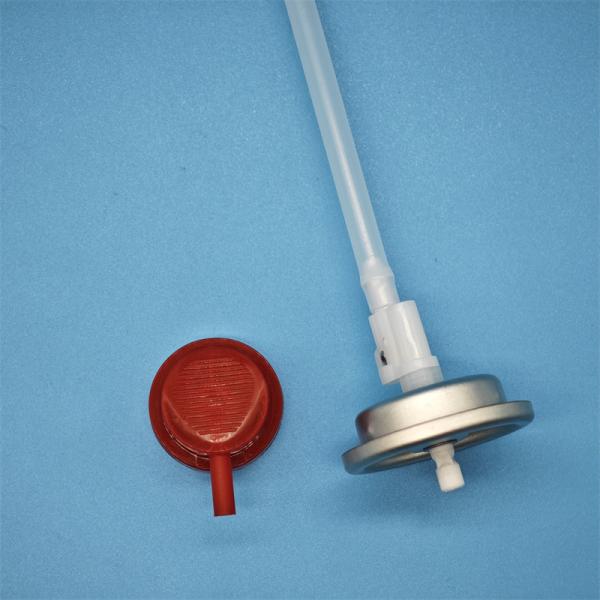

Effortless Full-Coverage Aerosol Valve and Actuator for Household Cleaning and DIY Projects with Consistent Mist Dispersion
Product Description:
Revolutionize your spraying tasks with our innovative 360 Degree Aerosol Valve With Actuator. Engineered for ultimate user convenience, this system allows you to dispense product – cleaners, lubricants, paints, or insecticides – from virtually any angle, including upside-down. The core innovation lies in the dip tube-free design enabled by the specialized aerosol valve mechanism. Unlike traditional valves that rely on a rigid dip tube drawing product only from the bottom, this valve features internal pathways that ensure product pickup regardless of canister orientation. Paired with an ergonomic actuator (spray button), it delivers a reliable, consistent spray pattern – typically a fine mist or targeted stream – every time you press, even when held inverted. This omnidirectional spraying capability is invaluable for applications like spraying under sinks, coating the underside of furniture, reaching deep into engine compartments, or applying product onto ceilings without straining wrists or missing spots. The actuator is designed for comfortable, fatigue-free operation during extended use. Constructed from materials compatible with a wide range of formulations, this full-coverage valve system ensures you utilize every last drop of product within the can, maximizing value and minimizing waste. Experience unparalleled flexibility and performance in home maintenance, crafting, automotive care, and pest control.
Bullet Points:
-
Enables true 360 degree spray functionality from any angle, even upside-down.
Features a reliable dip tube-free design for complete product evacuation.
Delivers a consistent spray pattern (mist/stream) via the ergonomic actuator.
Provides omnidirectional spraying access for hard-to-reach areas.
Ensures full-coverage application without canister repositioning.
Specific Application Scenario
Imagine cleaning the grease-laden underside of a kitchen range hood. A traditional aerosol can requires awkward tilting and often fails to spray effectively upside down. With this valve system, the user simply inverts the can and sprays directly upwards. The 360 degree spray capability allows comfortable application while standing, the dip tube-free design draws cleaner consistently, and the actuator delivers a steady mist, ensuring thorough full-coverage cleaning without drips or frustration.
Specifications:
| Component | Part No. | Part Description |
| Mounting cup | 1-F2 | Both sides with clear lacquered tinplate ,with down dimples |
| Outer gasket | 1-G1 | Buna |
| Inner gasket | 1-B4 | Neoprene |
| Stem | 1-A7 | Orange color, double orifice 2X diameter 0.51mm |
| Spring | 1-C1 | Stainless steel |
| Housing | 1-D1 | all direction valves housing tail orifice: diameter 2.0mm with stainless steel ball white |
-
FAQ:
-
Q: How does the 'dip tube-free design' actually work when the can is upside down? A: The specialized aerosol valve uses internal channels and a weighted pickup mechanism or floating piston design that always accesses the product pool, enabling reliable 360 degree spray regardless of orientation.
-
Q: Is the spray pattern consistent when spraying upside down compared to right-side up? A: Yes, rigorous design and testing ensure a consistent spray pattern (mist quality, flow rate) across the full 360 degree spray range, thanks to precise engineering of the valve and actuator orifice.
-
Q: Can I use this actuator with any standard aerosol can? A: The actuator is designed specifically for our 360 Degree Aerosol Valve. It is not compatible with standard valves due to the unique sealing and flow requirements for omnidirectional spraying.
-
Q: Is this valve suitable for all types of aerosol products? A: It's compatible with most common propellants (LPG, DME, compressed air) and formulations (water-based, solvent-based). Material compatibility (gaskets, valve body) should be verified for highly aggressive chemicals or extreme viscosities to maintain full-coverage performance.
-
Q: Does the actuator feel different to press than a regular spray button? A: The actuator is ergonomically designed for comfortable use. While the force might feel similar, the key benefit is the ability to achieve effortless full-coverage from any angle without changing grip.
